Features & Descriptions: Package Content:
Rating:12V/DC. 30A.
3 PINS WITH LED lamp , ON /OFF [ SPST ]
THE fluorescent lamp 's WILL TURN ON WHEN YOU TURN ON THE SWITCH.
Easy setup. 31mm x 19mm hole, 12mm diameter [ cut size for the tighten screw ] is required and the switch will sit in nicely; don't need to cut outs.
Special keyhole slot, which can prevent unwanted rotation(the bolts is not include).
Blue fluorescent lamp 's will be lighted up when the switch is turned on.
2 pole design (On/Off) , 3rd poles with LED to be connected to earth.
Main technical characteristics:
Name : ASW-20D blue 12V LED illuminated car led switch
Diameter :12mm diameter
Material: nylon material
Lamp : led lamp
Switch function : on-off
Rated voltage : 12VDC 30A
Contact R : 50m ohm max
Insulation R :500VDC 100 ohm min
Operating temperature : -25 to 85

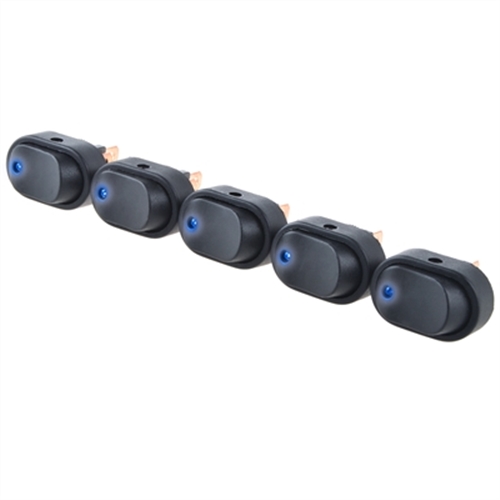

5 X Blue LED Switch
