Description:

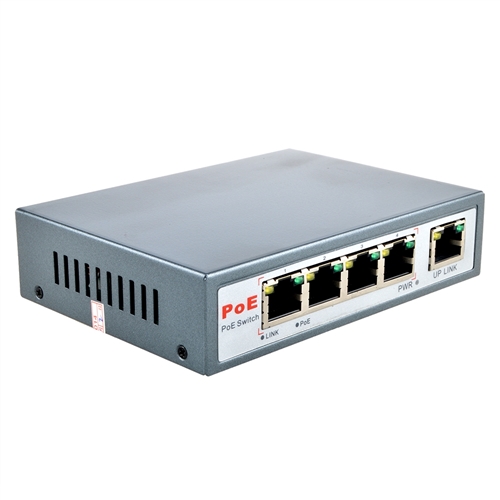

This 4 port POE Hub implements sufficient and advanced MCU control technology,which has efficient protection of each port.It is used with wireless AP, IP cameras,VOIP and other device that supports power over Ethernet.
Bandwidth:1.6Gbps
Acoustic Noise:0dB
Addressing:48-bit MAC address
Buffer memory:96KB embedded memory per unit
Mean Time Between Failure (MTBF):190000 hours(~21 years)
Address database size:1000 media access control(MAC) addresses per system
Network Protocol and Standards: IEEE802.3af,IEEE802.3at
Network latency:Less than 20μs for 64-byte frames in Store-and-Forward mode for 100Mbps to 100 Mbps transmission
IEEE802.3af Power Consumption: 56W maximum(Ports 1–4)48V DC, 1.25A power output
PoE Watt budget: 56W
Total Power Consumption: 60W maximum
Operating temperature: 0 to 55℃
Operating humidity: 90% maximum relative humidity, non-condensing
Dimensions (H*W*D):28mm*118mm*85mm
Weight::0.9kg
More effective protection circuit. Output protection on each port, short circuit,overload protection. When any power output short circuit or overload, the protect circuit is active, and the corresponding alarm indicator light flashes. Meanwhile all the other output ports are not affected.
Package include:
1 x 5Port 10/100 Switch/Hub with 4 POE ports
1 x 48V DC output AC/DC adapter
1 x Wall-mount kit
