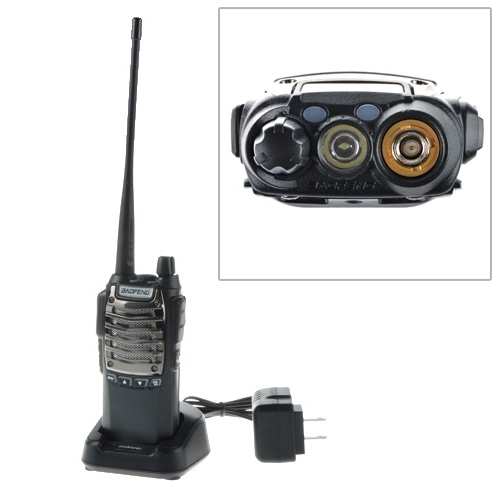

All of our items are Brand New Model UV-8D Dual PTT Single Band/Single Frequency 128 groups channels storage UHF: 400-480MHz Shortcut menu operation mode Emergency Alarm Transmitter time-out timer(TOT) VOX (0~9 grades) PTT & ANI ID FM radio (65-108MHz) Voice COMP CTCSS/ DCS Call Tone 1750Hz Repeater working confirmation TX power selectable(8W/1W) Busy channel lockout LED Flashlight DTMF Code Wide/Narrow Band Yes 25kHz/12.5kHz Frequency step Yes 12.5/25KHz Scanning function Yes Monitor function Yes Keypad lock function Yes Flashlight Yes Wire clone function Yes Low battery alarm Yes Power saving function Yes Chinese and English voice prompt Yes PC software programmable Yes Basic Descriptions Rated Voltage 7.4V DC Output power 8W/1W Battery type Li-ion battery Battery capacity 2800mAh Earpiece / MIC type 2 Pin KENWOOD Type Antenna SMA-Female Working temperature -20~+50 Degrees Celsius Antenna Impedance 50 ohm Weight 230g Dimension ( LXWXH ) 60 X 38 X 120 mm (Not Antenna ) Specification Frequency stability ± 2.5ppm Modulation F3E Max frequency deviation <= 5kHz(Wide)/<= 2.5kHz(Narrow) Emission current <=1.5A CTCSS / DCS 0.7 ± 0.1kHz(Wide)/0.4 ± 0.1kHz(Narrow) Spurious Radiation <=7.5µW Intermediation Distortion <10% Intermediation sensitivity 8-12mv Adjacent channel selectivity <= 65dB(Wide)/<= 60dB(Narrow) Modulation character 6 dB per fold frequency patch Sensitivity -122dbm (12dB SINAD) Audio Power 1W Audio Distortion <= 10% Blocking >= 85dB Spurious rejection >=65dB
Package Includes
1 x Portable radio
1 x Antenna
1 x Li-ion battery pack
1 x LI-ion charger
1 x Belt clip
1 x User''s manual
