Features:
40mm (diagonal) LCD Display
Max display: 1999, Auto polarity display
Small and compact design
Data hold function
Overload protection on all ranges
Battery low indication
Specifications:
Measuring range:
Max AC Current:400A
Max AC Voltage range:450V
Max DC Voltage range:600V
Resistance Measurement:200K Ohm range
Scale degree&Accuracy:
Showed as in the table
Function Range Scale degree Accuracy
20A~ 10mA
AC Current 200A~ 100mA ±(2.5%+10d)
400A~ 1V
DC&AC Voltage
AC 450V 1V ±(1.2%+5d)
DC 600V 1V ±(1.0%+2d)
Resistance
200KΩ 100Ω ±(1.0%+4d)
Diode Test / Transistor P-N junction test
Continuity test with buzzer sound while < 75 Ohm
Power: 2 x AAA 1.5v battery
Dimension: 150 x 63 x 28 mm
Unit net weight:123g
Unit packing gross weight:188g
NOTE: This product is suitable for measuring high resistances,voltages,and strong current in industry and home use.

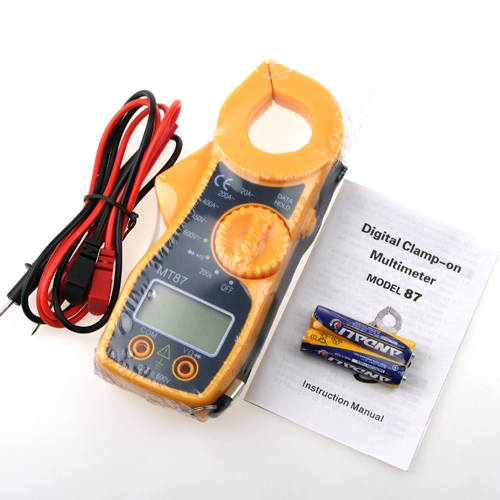

Package include:
1x Digital Clamp Multimeter ( AAA Batteries are NOT included )
2x Test Leads
