Description:
Description:
This is a high performance compact digital video recorder, the machine uses M-JPEG video compression technology, each channel high-definition D1, 720 * 480 (NTSC) and 720 * 576 (PAL) pixels, frames per second up to 30FPS ( NTSC) and 25PFS (PAL), is a true full-time, high-definition, low power consumption, easy operation, ultra-compact professional digital video recorder. DVR600 support power mobile video (pictures), motion detection recording (camera), all real-time video and other video modes. Machine up to 32GB of SD card, recorded video files stored on the SD card directly. Users can at any time in TV, Monitor. Wonderful view on the computer screen, SD card can also be image files stored in the computer.And it is a mini dvr,easy to carry,and save your cost.
Host applied widely, used in: schools, companies, office, warehouse, workshop, family, community, public space, parking, small private homes, shopping malls, plazas, corridor, road monitoring, etc.
Function:
1. Uses M-JPEG video compression technology, high-resolution per channel D1/720 * 480 (NTSC) and 720 * 576 (PAL) pixels, frames per second up to 30PFS (NTSC) and 25PFS (PAL);
2. Immediately after booting into the ""Dynamic Detection"" work status; (to detect moving objects automatically take pictures or videos immediately; no moving objects stop moving, stop shooting)
3. Supports a maximum capacity of 32GB of SD card;
4. Files stored there, ""Full Stop"" and ""automatic cycle cover / storage"" in two ways; power-down, SD card data is not lost; image file on the recording date and time;
5. Motion detection recording time can be set to 5 seconds or 10 seconds; manual real time recording 60 seconds（Full Stop）;
6. 2-channel video input, 1 channel video output connected TV, can directly access the camera provides a stable 12V power supply with a power output short circuit protection;
7. 2 way video input and output synchronized video ;
8. Or even host support Continuous recording function (Photo: 1.3.5 optional; video: 1.3.5 optional)
9. With Picture in Picture function, simultaneous monitoring of two cameras; two cameras simultaneously, the way all the way to take pictures for the video;
10. Key ports and the host has a key external video port;
11. Selectable motion detection sensitivity, while the motion detection area can mask the scope of
12. Support USB: connect USB (compatible with version 1.1 and 2.0 versions of the USB);
13. By the time the video you can find or delete the image file;
14. Shown with SD card capacity to support the TV, monitor, audio and video playback on the computer;
15. To support a wide voltage input, DC 5V ~ 12V range can be stable job;
Technical parameters:
Model:WT100
Material: Metal
Working voltage:DC5V-12V
Working Current:170mA(only)
Working temperature: -10°C~+50°C
Power output (for camera): DC12V，1000 mA
Input signal:Video (2-channel input)
Memory Capacity Max:32GB SD
Card Type:SD/SDHC card
Video format:AVI
Compression: M-JPEG
Video resolution:D1/QVGA
Frame rate: 5FPS/10FPS/15FPS/20FPS/25FPS/30FPS selectable
Video Length:Motion detection: 5 seconds or 10 seconds; manual at full time: 60 seconds
Video capture: Motion detection or manual recording
File Storage:FULL-STOP or automaic coverage
Input Impedance: 75Ω Typ-p
Output Impedance:75Ω Typ-p
Performance of continuous video or photo 1,3,5 selectable
Language: English
Product Size:11.9(L) x 10.9 (W)x 2.6(H) cm
Package Size:23(L) x15.3(W)x7.1(H)cm
Product Weight:223.9g
Package Weight:0.7KG

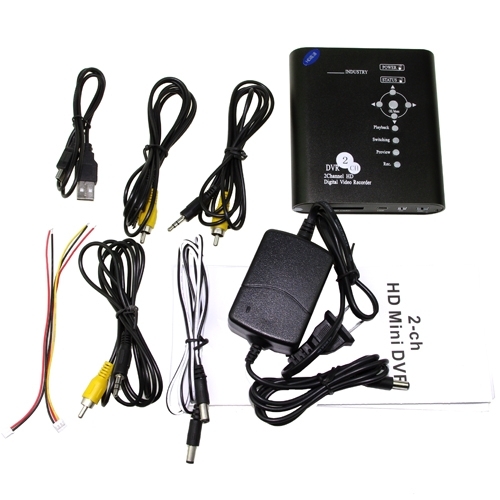

Package Include:
1x Host
3x AV cable
1x USB cable
1x a power cord for the camera,
1x a video line of control keys,
1x a dedicated DC12V 100-240V power supply,
1x English Manual
1x Chinese Manual
1x Retail Box
