Description:

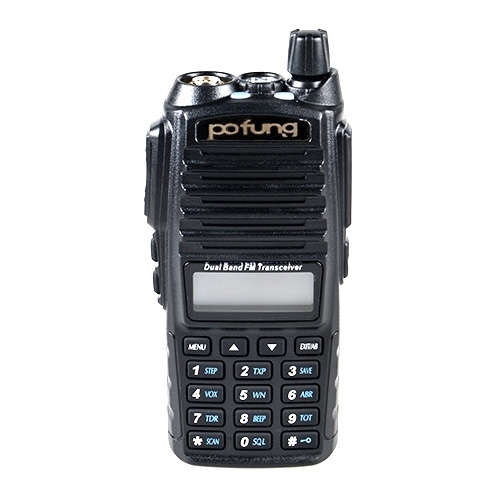

2014 Pofung UV-82L VHF/UHF 136-174 / 400-519.995 MHz Two-way FM Ham Radio
With Original PTT Earpiece, SMP Internal Speaker, 3000mAh Battery, 18cm Booster Antenna General Transmitter
Same Day Ship from US Warehouse
Features:
1. The 2014 UV-82L transmit and receive signals more sensitive than other walkie-talkies, it with the new circuit design, stronger stability and anti-interference ability.
2. Equipped with high quality SMP Speaker, perfect sound quality (Same with the MOTOROLA walkie-talkies)
3. 18cm high performance antenna, support longer distance and receive signal more stable. The more human-friendly thing is it with two signal indicators, one is for send signal and one for receive signal, it use newest focusing lens design and higher brightness.
4. Upgrade the function and smarter than other walkie-talkies. It support two channels display at the same time also can automatic lock the strong signal channels as the main frequency.
5. Original headsets come with PPT button, the walkie-talkie PPT support send the above channels via the UP button and send the following channel via the down button.
6. Upgrade the battery capacity, 3000mAh super capacity battery and last longer battery life.
Functions:
* Dual PTT keys
* Frequency Range: 136-174 & 400-520MHz
* Dual Frequency, Dual Standby
* Dual band, dual display
* A/B band independent operation
* 128 groups channels storage
* Shortcut menu operation mode
* VFO & Memory channels scan
* Emergency Alarm
* Tri-color background light selectable
* 0~9 grades VOX selectable
* PTT & ANI ID
* FM radio and 25 stations storage
* 1750Hz Burst
* Tone Time-out Timer
* Channel Monitor
* Battery Saver
* Keypad Lock
* Channel Step: 2.5/5/6.25/10/12.5/25KHz
* Low Battery Alert
* ROGER SET
* Emergency Alert
* 25KHz/12.5KHz Switchable
* FM Radio (65.0MHz-108.0MHz)
* Large LCD Display
* LED Flashlight
* Hight /Low RF Power Switchable
* Voice companding
* 50 CTCSS/ 104DCS coder & tone searching
* PC programmable
* Wide/Narrow Band(25kHz/12.5kHz)
* Transmitter time-out timer (TOT)
* High/Low TX power selectable
* Busy channel lock-out (BCLO)
Specifications:
Item Name
UV-82L
Frequency Range
65-108MHz(FM Receive only)
136-174MHZ and 400-520MHZ (TX/RX)
Channel No
128
Frequency Stability
±2.5ppm
Antenna
18CM High Gain Dual Band Antenna
Antenna Impedance
50
Operating Voltage
DC 7.4V
Mode of operation
Simple or semi-duplex
Antenna:
SMA -Female 18 CM
Earpiece / mic type:
Kenwood Plug type
Power adapter
Input: AC100-240V, 50-60Hz
Output: DC10V/500mA
Plug Type: US
Weight
238g(including battery, antenna)
Dimensions
132 x 60 x 35 mm (not included antenna)
Output power
5W
Modulation Mode
16kF3E / 11kF3E
Maximum deviation
5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation
7W
Adjacent Ch. power
-65dB(Wide) / -60dB(Narrow)
Pre-emphasis characteristics
6dB
Current
1.6A(5W)
CTCSS/DCS deviation
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity
8-12mv
Intermediation distortion
10%
Package include:
1x Pofung UV-82L (VHF 174Mhz,UHF 400-520Mhz)
1x 7.4V 3000mAh Li-ion Battery
1x Original Earpiece
1x 18cm Dual Band Antenna
1x Power Adapter
1x Belt Clip
1x Hand Strap
1x Battery Charger
1x User Manual
