100% New XTAR VC2 Plus Led USB battery charger
Introduction
As a breakthrough innovation, VC2 Plus Master is a smart charger that has countdown timer for each bay showing the time it needs to fully charge the battery. It can recognize, charge, and display both Ni-MH and Li-ion batteries at the same time and you can totally control the charging speed (0.5A/1.0A) as you like. In order to save time, the USB Output with Power-Path Management System enables you to charge both batteries and the external device at the same time while power is connected!
Master your time
- Countdown timer for each bay showing the time it needs to be fully charged. You can completely master your time and plan ahead.
- Battery power icon and percentage display. You can clearly know the battery power and charging status by ramping up from 0% to 100% when the battery is fully charged. And screen also will display “Full”.
- Red LED indicator turns green.
Power-Path USB output is more than a power bank function
- Power-Path USB output enables you to charge both batteries and the external device at the same time while power is connected. VC2 Plus Master is more than a charger for your batteries. It also a charger for your device.
- Display the battery power while as a power bank. Clearly know the battery power discharging status by ramping down from 100% to 1% and then stop charging external device.
Take care of your batteries in all aspects
- With Optional charging currents, you can control the charging speed (0.5A/1.0A) as you like. Ensure fast charging while also prolong the battery life.
- Automatically detect battery type and choose the most suitable charging method. Using TC-CC-CV charging for Li-ion battery and pulse charging for Ni-MH/Ni-CD battery. You can mix and charge all kinds of batteries together.
- XTAR Current Buffering Charging Technology protects the batteries from high current impact during the charging process.
Innovative LCD screen tells you everything you want
- Displays charging current, battery power percentage, countdown timer to fully charge. VC2 Plus Master can intelligently recognize/ display/ charge Ni-MH and Li-ion batteries at the same time.
- If the bad battery can''t be activated, screen will display “null”, and if polarity-reverse or charger short circuit happens, screen will display “Err”.
- The backlight will automatically get into energy saving mode without any operation after 2min (inserting battery or pressing button). And can be off by pressing the button for 1.5s to save energy and avoid light pollution.
Bring you great convenience and also save your money
- XTAR 0V Activation Function can revive “damage” (low voltage) battery to save your money.
- Compatible with any 5V USB power including USB wall adaptors, cell phone chargers, solar panel, PC USB, etc. No need to buy other adaptors. Use 5V 2.1A input power can maximize the advantages of the VC2 Plus.
- Automatically stop charging when complete and restart charging function makes it safe to keep the batteries inside the charger overnight.
- Apply to 10440/14500/14650/16340/17335/17500/17670/18350/18490/18500/18650/18700/22650/25500/26650/32650 3.6V/3.7V Li-ion/IMR/INR/ICR and AAAA/AAA/AA/A/SC/C/D Ni-MH/Ni-CD batteries, no need to buy other chargers for different kinds or sizes of batteries.
- ABS durable fireproof shell with perfect heat dissipation and high temperature resistance, keep the cell temperature impressive low during the charging.
Specification：
Input Power: 5V DC / 2.1A
Net Weight: 115g
Dimensions: L131 x W66 x H33mm
Operation Temperature: 0-40℃
Apply to: 10440/14500/14650/16340/17335/17500/17670/18350/18490/18500/18650/18700/22650/25500/26650/32650 3.6V/3.7V Li-ion/IMR/INR/ICR and AAAA/AAA/AA/A/SC/C/D Ni-MH/Ni-CD batteries
Lithium batteries charging parameter:
0.5A Constant Current: 500mA
1.0A Constant Current: 1000mA
Cut-off Voltage: 4.2V±0.05V
Ni-MH batteries charging parameter:
0.5A Pulse Charging Current: 500mA
1.0A Pulse Charging Current: 1000mA
Cut-off voltage: 1.40±0.1V
USB output parameter:
USB output no-load Voltage: 5.0±0.25V
Max output current: 1000mA
Battery over-discharge protection voltage: 3.0±0.2V

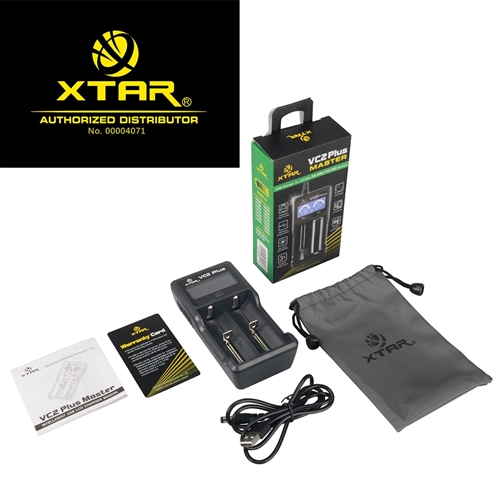

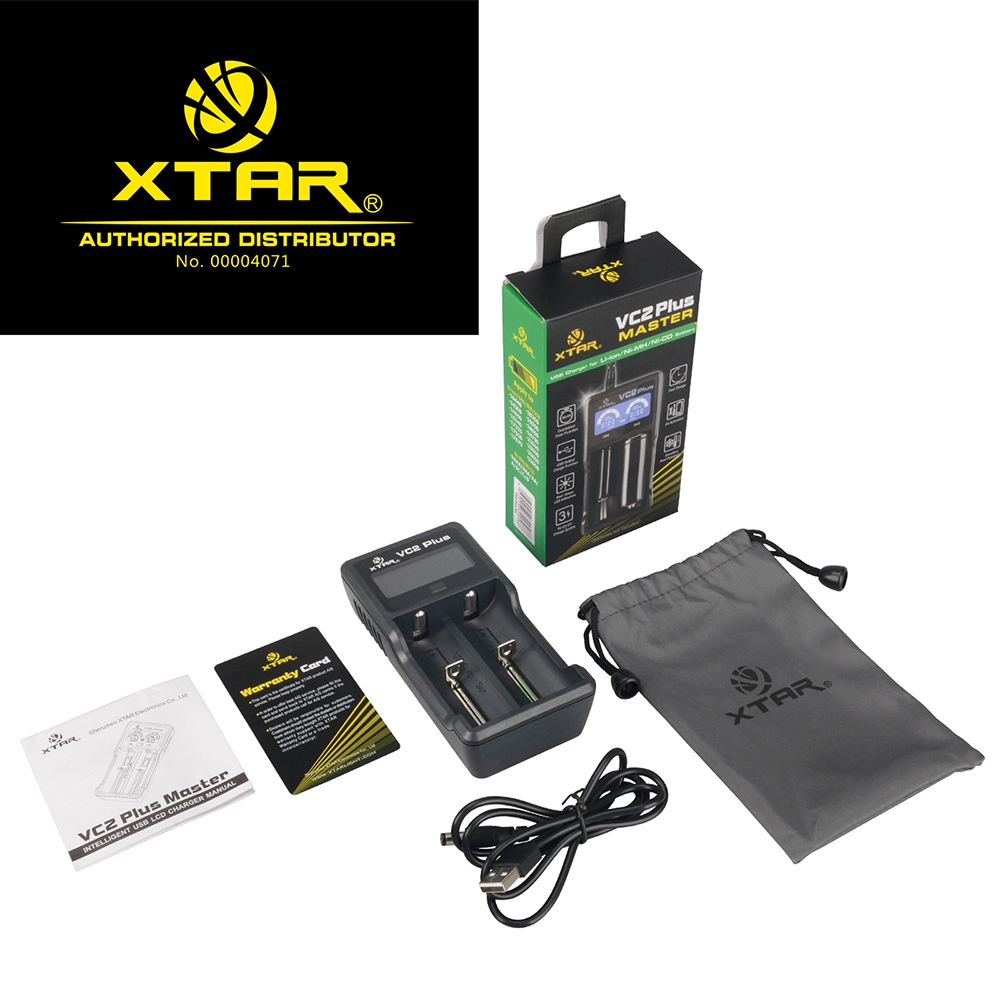

Accessories:
USB Cable, Hop-pocket, Manual, Warrenty Card
Not include batteries
Package include:
