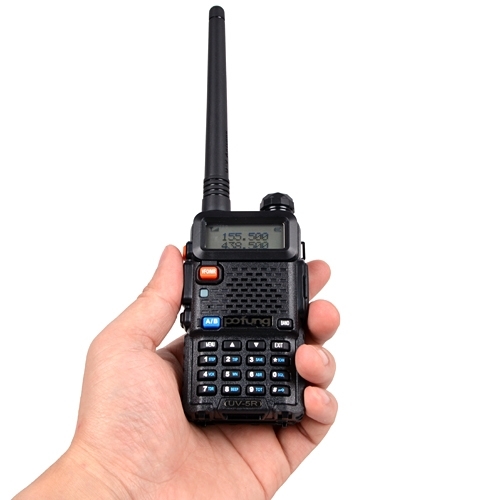

pofung UV-5R Dual Band UHF/VHF 136-174/400-480Mhz Radio

Item #209000001 ( date added:5/8/2014 , 98 customers visited )
(Write a review)

Retail price: ~~US$ 65.00~~
Our Price US$: 50.00
Start from: 1 Unit(s)
Fill in your details to get a special dress tailor-made for you. Please note a US$ 00.00 fee applies.

Bust :

Waist :

Hips :

Hollow to Hem :

(US$ 19.99)
Lowest Price Guaranteed >>
Email Your Friend This Page >>

Email Your Friend This Page.

Just fill in the blanks and press "Email a Friend", we'll send them an Email for you. LinkedNew.com will not use the Email address for any other purpose. By sending this link to a friend, you agree to the Email agreement.

Our Price is not the lowest?

just tell us where you found the lowest price for this same item, we will beat the price, and we will contact you later for the best deal.

Item URL(http://): *	copy the website address and paste it here
Your Email: *
Submit Lowest Price Info

Express Check Out US$:50.00

If you buy only one single item, check out right here.

It usually takes only less than 24 hours to ship out your order with FREE gift box, direct from our multi wearhouses. You will mostly get your order within 1-10 business days, the exact delivery time are based on the freight service you choose when you check out, e.g. (UPS,US Post Office). For International shipping outside USA, the delivery time may vary.

US$ 50.00 + Shipping Cost

Start from:

Unit(s)

Contact Us

info@LinkedNew.com
or
visit support forum

Description:

Descriptions：

VHF/UHF Dual-Band Two-Way Radio

·Frequency Range: 136-174 / 400-480MHz
·Dual-Band Display, Dual Freq. Display, Dual-Standby
·Output Power: 4 /1Watts
·128 Channels
·50 CTCSS and 104 CDCSS
·Built-in VOX Function
·1750Hz Brust Tone
·FM Radio (65.0MHz-108.0MHz)
·LED Flashlight
·Large LCD Display
·Hight /Low RF Power Switchable
·25KHz/12.5KHz Switchable
·Emergency Alert
·Low Battery Alert
·Battery Saver
·Time-out Timer
·Keypad Lock
·Monitor Channel
·Channel Step: 2.5/5/6.25/10/12.5/25KHz

·ROGER SET

Dual band, dual display, dual standby	A/B band independent operation
128 groups channels storage	Shortcut menu operation mode
VFO & Memory channels scan	Emergency Alarm
Tri-color background light selectable	0~9 grades VOX selectable
PTT & ANI ID	FM radio
Voice companding	CTCSS/DCS
Wide/Narrow Band(25kHz/12.5kHz)	PC programmable
High/Low TX power selectable	Transmitter time-out timer(TOT)
	Busy channel lock-out(BCLO)

Specifications:

Model	UV-5R
General
Frequency Range	65-108MHz(FM Receive only) 136-174MHZ and 400-480HZ (TX/RX)
	0~9 grades VOX selectable
Channel No.	128
Frequency Stability	±2.5ppm
Antenna	High gain DualBand antenna
Antenna Impedance	50Ω
Operating Voltage	DC 7.4V
Mode of operation	Simple or semi-duplex
Dimension（W x H x D）	100 x 52 x 32 mm
Weight	250g（including battery, antenna）
Transmitter
Output power	4W / 1W (Max 5W)
Modulation Mode	16kΦF3E / 11kΦF3E
Maximum deviation	＜5kHz(Wide) / ＜2.5kHz(Narrow)
Spurious Radiation	＜7μW
Adjacent Ch. power	≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics	6dB
Current	≤1.6A(5W)
CTCSS/DCS deviation	0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity	8-12mv
Intermediation distortion	＜10%

Earpiece / mic type : Kenwood Plug type
Antenna : SMA -Female

Package Include :

    1 x UV-5R (VHF136-174Mhz UHF 400-480Mhz)
    1 x 7.4V 1800mah Li-ion Battery Pack
    1 x Antenna 136-174/400-470Mhz
    1 x Belt Clip
    1 x ENG Manual
    1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
    1 x PTT Earpiece for free
